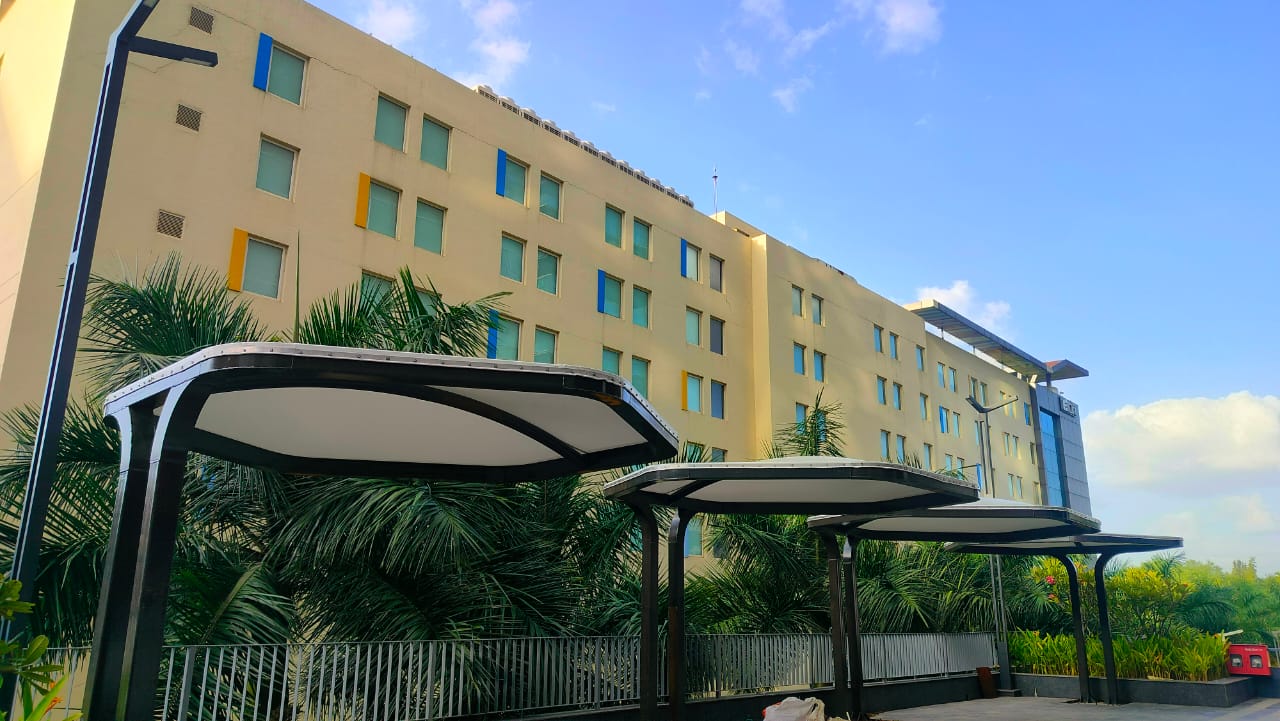

Cantilever Tensile Structure

Cantilever Tensile Structure

A Cantilever Tensile Structure is a modern and space-efficient roofing solution designed to provide maximum coverage with minimal support columns. Featuring a sleek cantilevered design, this structure offers unobstructed movement beneath the canopy while enhancing the visual appeal of commercial, residential, and public spaces. Its contemporary appearance, combined with superior weather protection, makes it a popular choice for walkways, entrances, drop-off zones, and outdoor seating areas.

Engineered for strength, durability, and architectural elegance, cantilever tensile structures deliver reliable protection from sun, rain, and environmental conditions while maintaining a clean and sophisticated look. Their versatile design allows them to be customized for a wide range of applications and project requirements.

Benefits

  1. Modern and stylish appearance
  2. Unobstructed open space below
  3. Excellent sun and rain protection
  4. Space-efficient design
  5. Lightweight yet durable construction
  6. Low maintenance requirements
  7. Long service life
  8. Quick installation process
  9. Improved pedestrian comfort
  10. Cost-effective roofing solution

Types

  1. Single-Sided Cantilever Structure
  2. Double-Sided Cantilever Structure
  3. Entrance Canopy Structure
  4. Walkway Cantilever Canopy
  5. Commercial Cantilever Roof
  6. Landscape Tensile Structure
  7. Custom Cantilever Tensile Design

Fabric Materials

  1. PVC Coated Polyester Fabric
  2. PTFE Coated Fiberglass Fabric
  3. PVDF Coated Fabric
  4. HDPE Shade Fabric
  5. Waterproof Tensile Membrane
  6. UV Resistant Architectural Fabric

Frame Materials

  1. Structural Steel
  2. Galvanized Steel
  3. Mild Steel (MS)
  4. Powder-Coated Steel
  5. Stainless Steel Components
  6. Hot-Dip Galvanized Framework

Design Considerations

  1. Span and Projection Length
  2. Wind Load Requirements
  3. Rainwater Drainage Design
  4. Structural Stability Analysis
  5. Fabric Tensioning Requirements
  6. Site Layout and Access
  7. Architectural Integration
  8. Environmental Conditions

Key Components

  1. Tensile Membrane Fabric
  2. Cantilever Support Columns
  3. Structural Steel Beams
  4. Edge Frames
  5. Tension Cables
  6. Connection Fittings
  7. Base Plates
  8. Anchor Bolts
  9. Foundation System
  10. Drainage Components
  11. Roof Edge Profiles
  12. Protective Coatings

What We Serve

At Imperial Tensile Structure, we design, manufacture, and install premium tensile membrane structures that combine durability, functionality, and modern aesthetics. Our solutions are customized to meet residential, commercial, industrial, and public infrastructure requirements.
