Barrel Vault Tensile Structure
Home > Products - Barrel Vault Tensile Structure

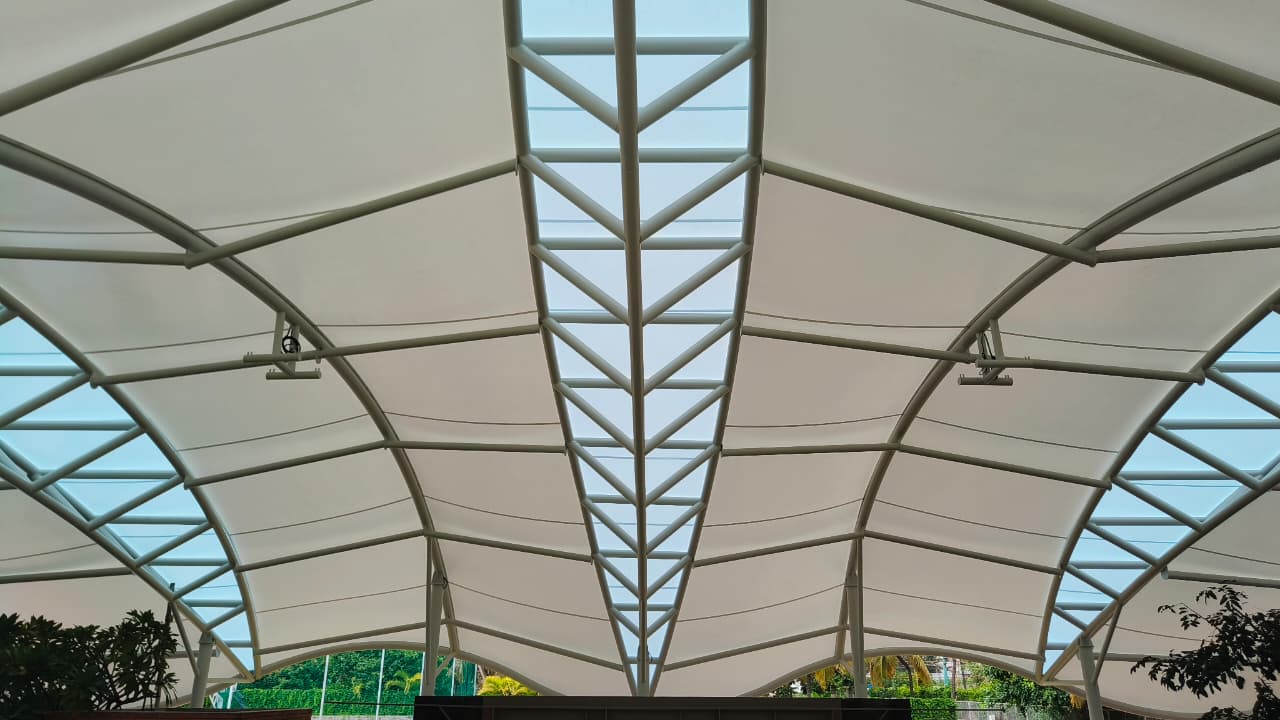

Barrel Vault Tensile Structure

A Barrel Vault Tensile Structure is a modern architectural roofing solution characterized by its elegant curved profile and large-span coverage capabilities. Designed to provide maximum protection from sun, rain, and environmental conditions, this structure combines aesthetic appeal with exceptional functionality. Its unique arch-shaped form creates spacious, column-free areas while allowing natural light and ventilation, making it an ideal choice for commercial, recreational, and public spaces.

Benefits

  1. Elegant curved architectural appearance
  2. Excellent rainwater drainage
  3. Large column-free covered area
  4. Natural daylight through skylight sections
  5. Weather-resistant roofing solution
  6. Lightweight yet durable structure
  7. Low maintenance requirements
  8. Long service life
  9. Energy-efficient design
  10. Quick installation process

Types

  1. Single Barrel Vault Structure
  2. Multi-Bay Barrel Vault Structure
  3. Skylight Barrel Vault Canopy
  4. Walkway Barrel Vault Cover
  5. Parking Barrel Vault Structure
  6. Commercial Barrel Vault Canopy
  7. Custom Barrel Vault Tensile Structure

Fabric Materials

  1. PVC Coated Polyester Fabric
  2. PTFE Coated Fiberglass Fabric
  3. PVDF Coated Fabric
  4. HDPE Fabric
  5. Waterproof Tensile Membrane
  6. UV Resistant Architectural Fabric

Frame Materials

  1. Galvanized Steel
  2. Structural Steel
  3. Mild Steel (MS)
  4. Powder-Coated Steel
  5. Stainless Steel Components
  6. Hot-Dip Galvanized Framework

Design Considerations

  1. Span Width and Coverage Area
  2. Wind Load Requirements
  3. Rainwater Drainage Design
  4. Skylight Placement
  5. Structural Stability
  6. Fabric Tension Requirements
  7. Site Conditions
  8. Architectural Appearance

Key Components

  1. ensile Membrane Fabric
  2. Arch Steel Frames
  3. Main Structural Beams
  4. Skylight Panels
  5. Tension Cables
  6. Edge Cables
  7. Connection Fittings
  8. Support Columns
  9. Base Plates
  10. Anchor Bolts
  11. Foundation System
  12. Drainage Arrangement

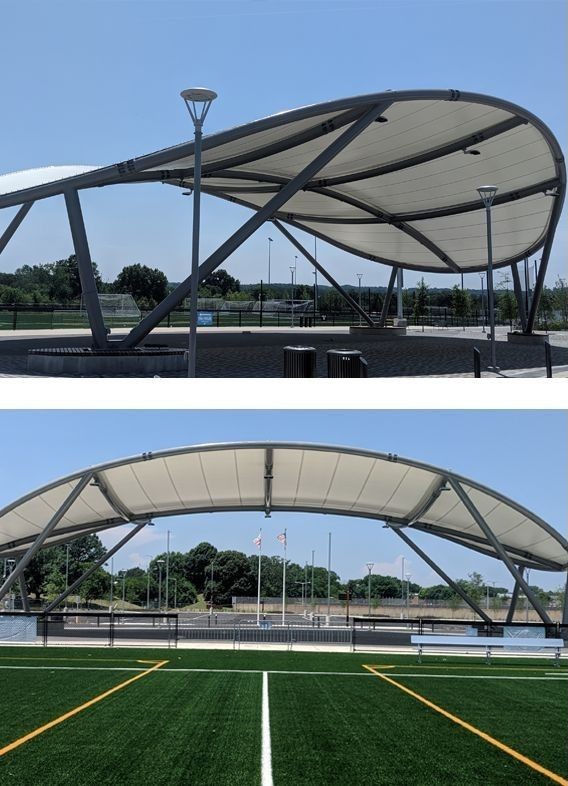

Project Gallery

What We Serve

At Imperial Tensile Structure, we design, manufacture, and install premium tensile membrane structures that combine durability, functionality, and modern aesthetics. Our solutions are customized to meet residential, commercial, industrial, and public infrastructure requirements.
